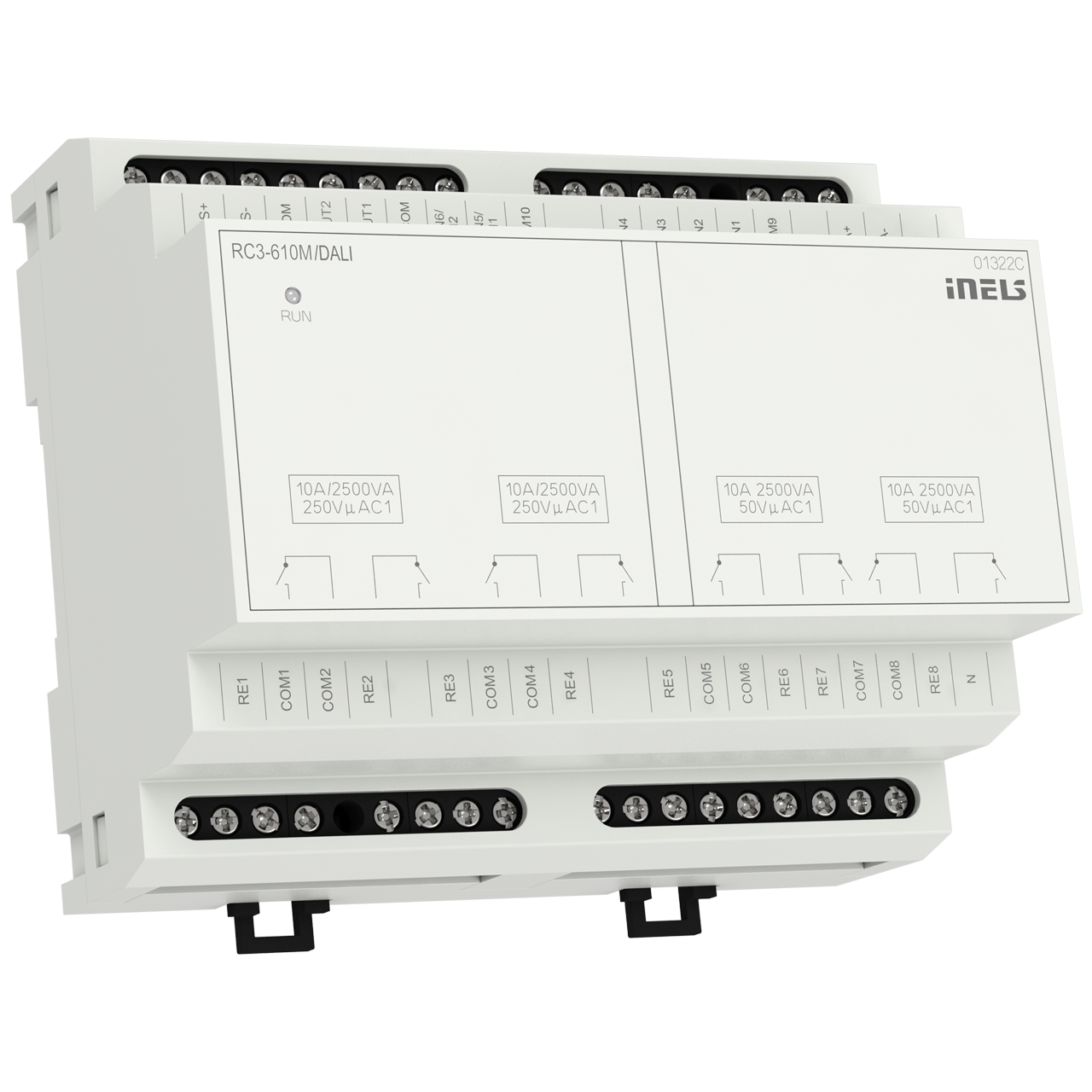

The RC3-610M/DALI is an I/O actuator equipped with 6 binary inputs, of which 2 can be confi gured as temperature inputs and 8 independent relays with switching potential-free and potential contacts. It also includes two analog outputs 0(1)-10 V with a load capacity of up to 10 mA.

Binary inputs RC3-610M/DALI are used for connecting up to 6 devices with a non-decimal contact (such as switches, switches, buttons of other designs, EZS and EPS detectors and others).

Temperature inputs support the connection of TC/TZ temperature sensors in a 2-wire connection for temprature sensing needs.

The actuator is designed for switching up to eight different appliances and loads by relay output (potential-free contact).

The maximum load capacity of the relay contacts is 10 A/2500 VA/ AC1. Each of the output contacts is individually controllable. Relays are divided into four pairs, where each pair switches on its common potential.

The DALI system BUS allows control of up to 16 independent DALI (Digital Addressable Lighting Interface) ballast addresses for fluorescent, LED, and other luminaires.

Analog outputs are considered for use with thermoregulation heads, air-conditioning ventilation flaps, various other dimmers or other devices with an analog control voltage of 0-10 V or 1-10 V.

The parameters of all confi gurable inputs and outputs are set in the iNELS Designer & Manager configuration software environment, which is designed for Windows 7, 8 and 10 operating systems.

RC3-610M/DALI in 6-MODULE version is designed for mounting into a switchboard on DIN rail EN60715
