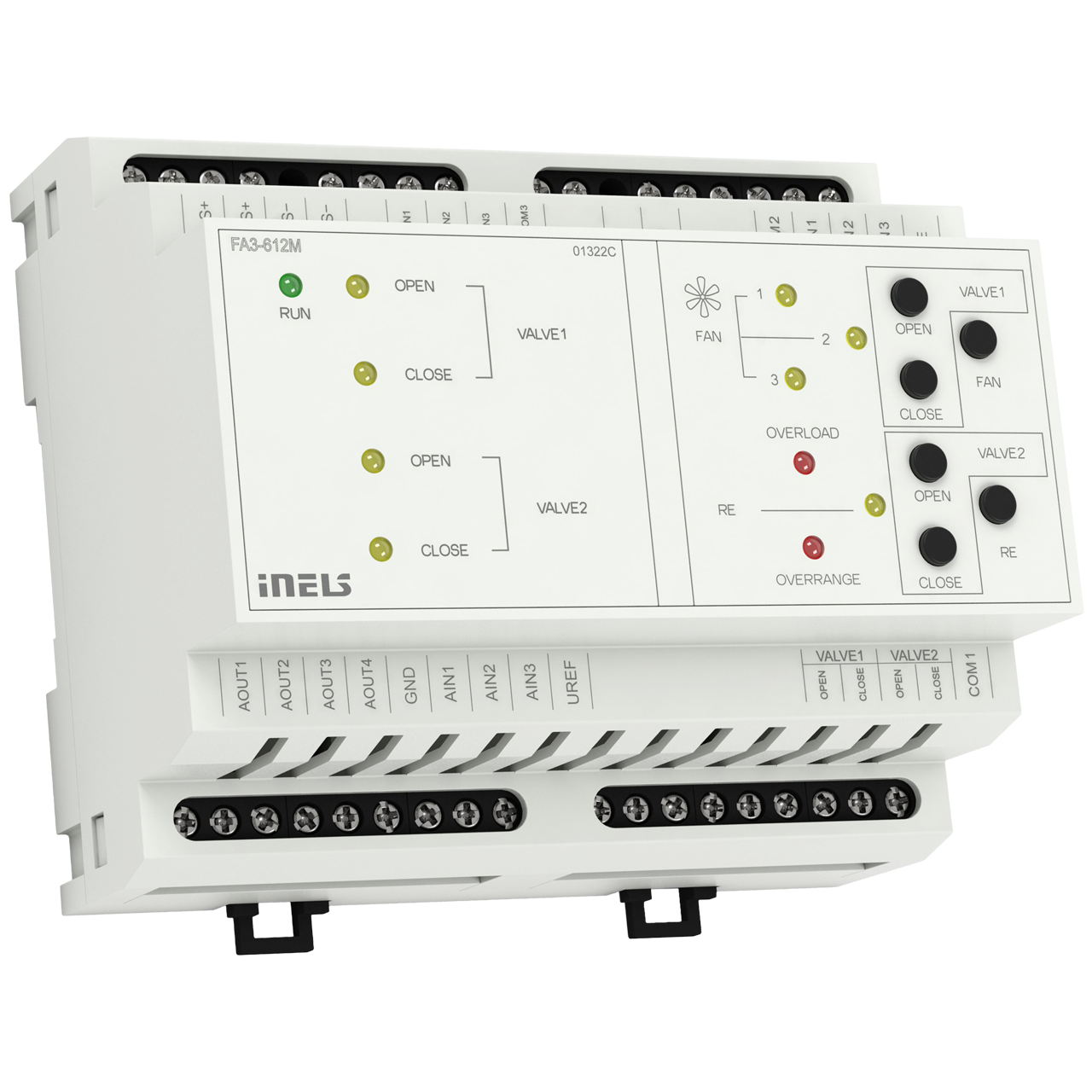

FA3-612M
Fan coil control actuator
FA3-612M is a unit (actuator) designed to control fan coil units using analogue/digital inputs and analog/relay outputs.
Analog inputs for temperature, voltage or current measurement (URef reference voltage can also be used).
The digital inputs are galvanically isolated with positive logic (Sink) in the 24-230 V AC/DC voltage range.
Analog outputs 0-10 V.
Connection to the installation BUS.
Buttons for closing/opening the valve, fan and heating relay.
The LEDs on the front panel indicate FAN, RE, VALVE1, VALVE2, OVERRANGE, and OVERLOAD status.
FA3-612M in 6-MODULE version is designed for mounting into a switchboard, o EAN code n DIN rail EN60715.
- EAN
- 8595188135276
- Product code
- FA3-612M
