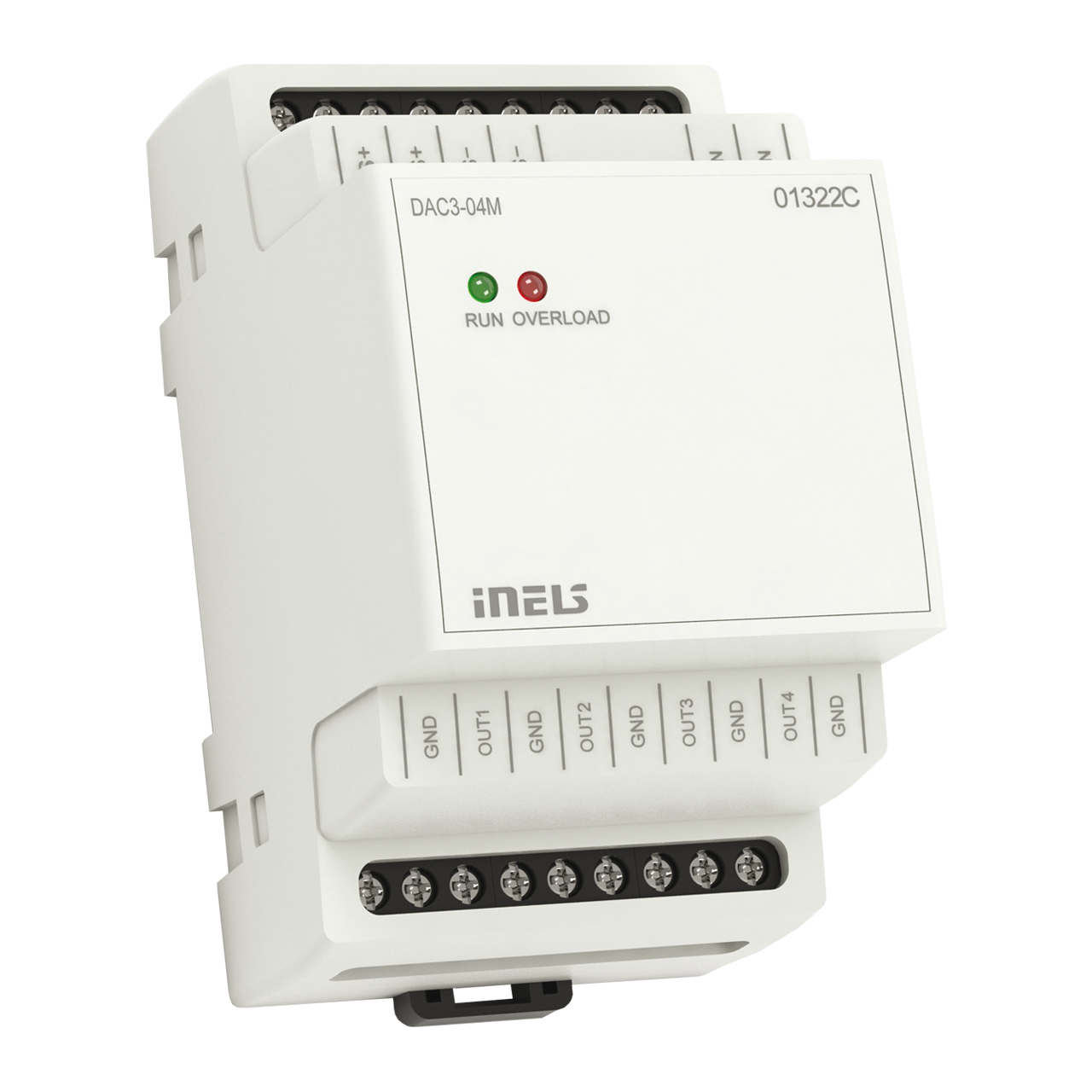

DAC3-04M

DAC3-04M is a converter from a digital signal to an analog voltage signal.

The converter generates 4 analog voltage signals, which can be operated, according to the type of controlled device, in a range 0-10 V or 1-10 V.

This is used for regulating and controlling devices that may be controlled by this signal (dimmable ballasts of fluorescent lamps and other types of light sources - e.g. LED panels from the assortment of ELKO Lighting, dimming actuator for LED and RGB strips RFDA-73M/ RGB, thermostatic heads, servo drives, elements for measuring and regulation and others).

The range of output voltage is adjustable in iDM3.

The converter is equipped with a temperature input for connecting a 2-wire external sensor TC/TZ (see accessories).

DAC3-04M in 3-MODULE version is designed for mounting into a switchboard, on DIN rail EN60715
