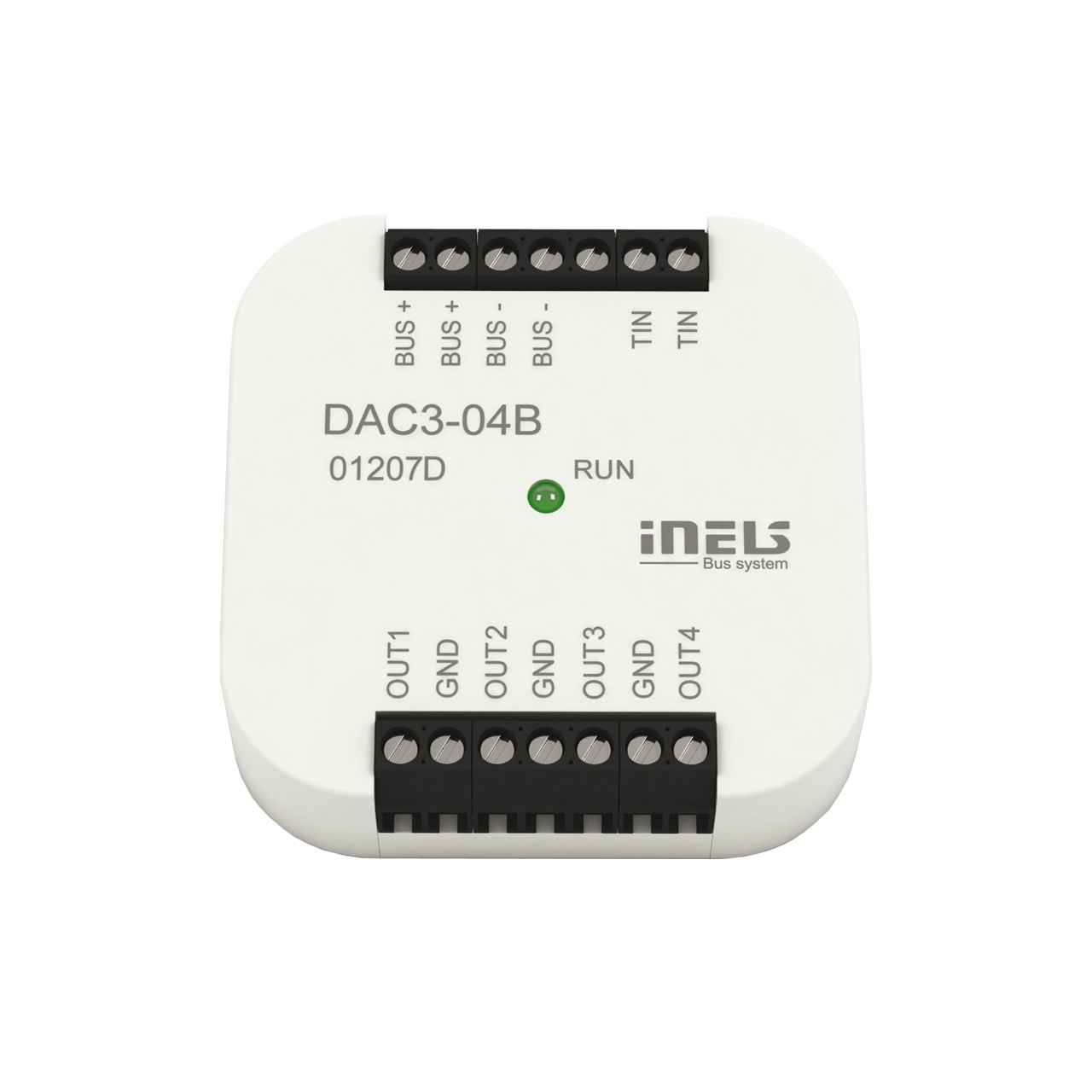

DAC3-04B

​The converter generates 4 analog voltage signals, which can be regulated according to type of controlled device, in a range 0-10 V or 1-10 V.

This is used for regulating and controlling devices that may be controlled by this signal (dimmable ballasts of fluorescent lamps and other types of light sources - e.g. LED panels from the assortment of ELKO Lighting, dimming actuator for LED and RGB strips RFDA-73M/ RGB, thermostatic heads, servo drives, elements for measuring and regulation and others).

Range of output voltage is adjustable in iDM3.

DAC3-04B is equipped with a temperature input for connecting a 2-wire external sensor TC / TZ.

DAC3-04B in version B is designed for mounting into an installation box.
