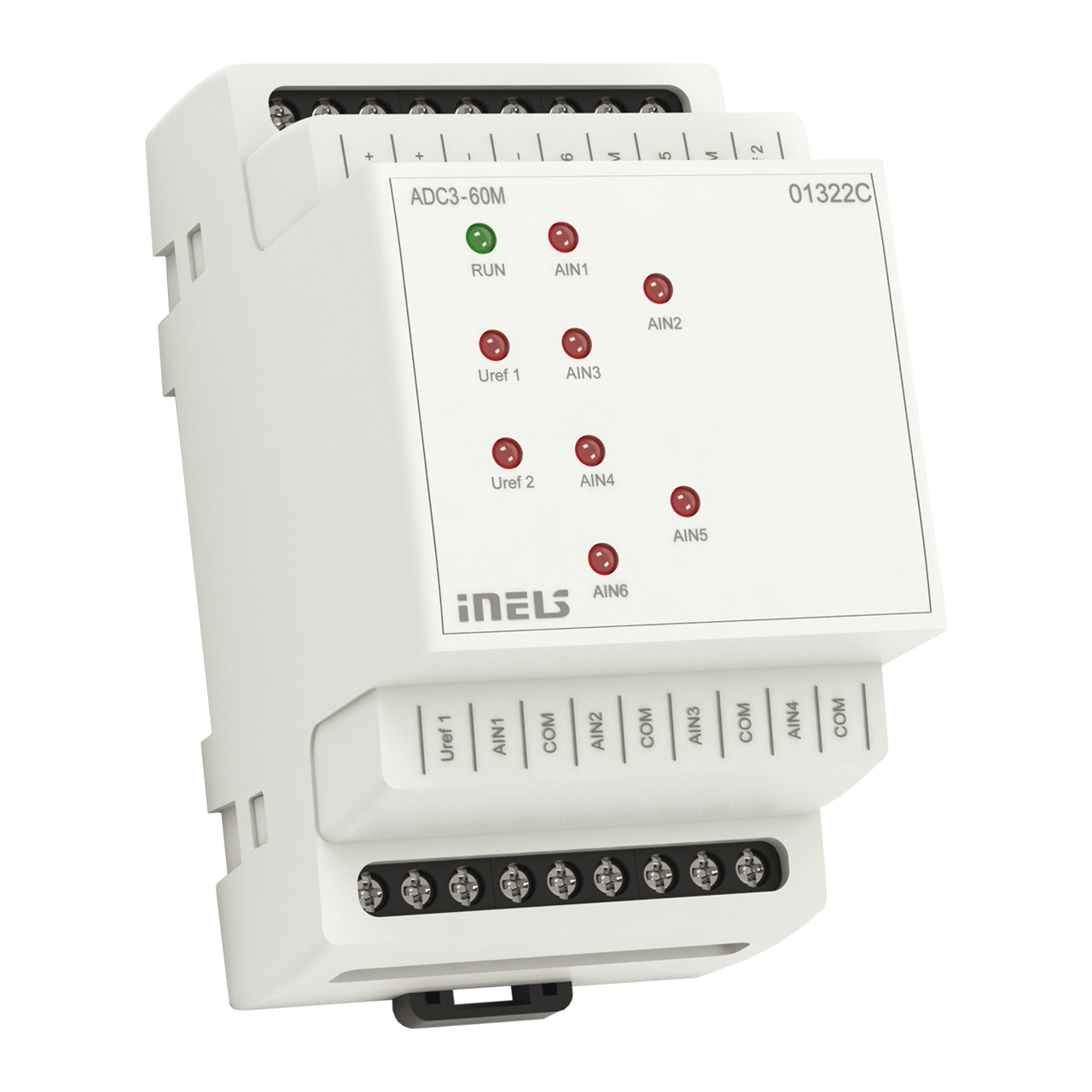

ADC3-60M

ADC3-60M is an analog-to-digital converter and is equipped with 6 analog inputs.

Analog inputs serve to connect temperature sensors or analog sensors that generate current or voltage signals.

The analog inputs have a resolution of a 14-bit AD converter.

The analog inputs have a common terminal COM.

Analog inputs/outputs are configurable in iDM3 independently as voltage (U) or current (I) or temperature.

We recommend Clima sensor as a meteostation. There are four types: five to eight outputs. The top series offers measures of: rainfall, brightness, twilight, speed of the wind, temperature and relative humidity.

The red LEDs in the front panel indicate exceeding the range, interruption of a sensor or overload of Uref output.

The temperature inputs at the top of the terminal are used to connect the following temperature sensors: TC, TZ.

ADC3-60M in 3-MODULE version is designed for mounting into a switchboard, on a DIN rail EN60715.
