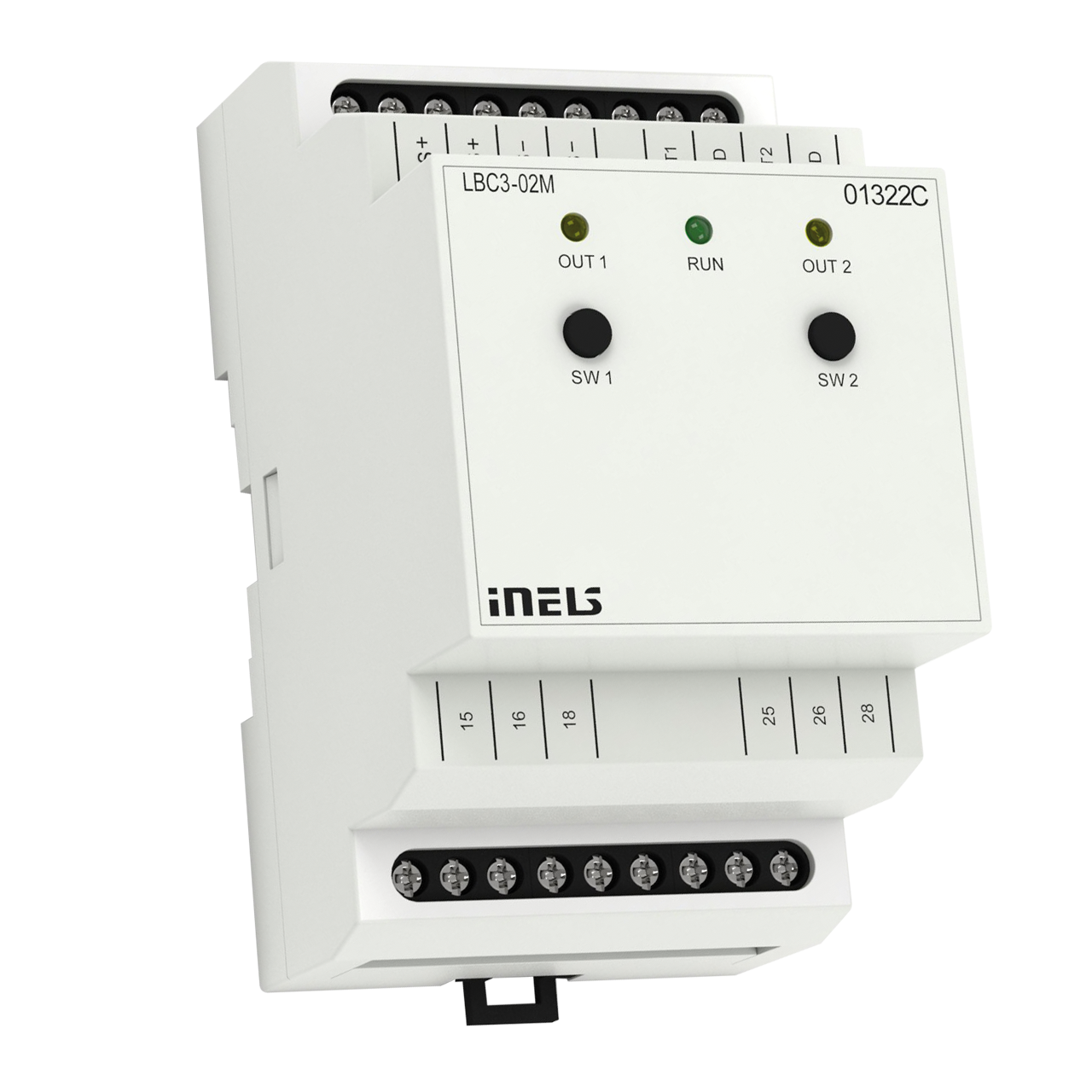

LBC3-02M

LBC3-02M is an analog 2-channel actuator designed to control dimmable ballasts of fluorescent lamps or other light sources controlled by signal 0(1) - 10 V DC.

In the iDM3, it is possible to set the output mode 0(1) - 10 V DC.

During analog voltage output (0)1-10 V DC control, the relay contact automatically switches the power supply to light ballast (0% = relay OFF, 1-100% = relay ON)

LBC3-02M contains 2 independent analog voltage outputs (0)1-10 VDC and their dependents 2 relays with potential-free contact.

Maximum contacts load 16 A/4000 VA/AC1.

Each of 2-channels is separately controllable and addressable.

LEDs on the front panel signal status of each channel.

With control buttons on the front panel, it is possible to change the status of each channel separately.

LBC3-02M in 3-MODULE version is designed for mounting into a switchboard/ DIN rail EN60715.
