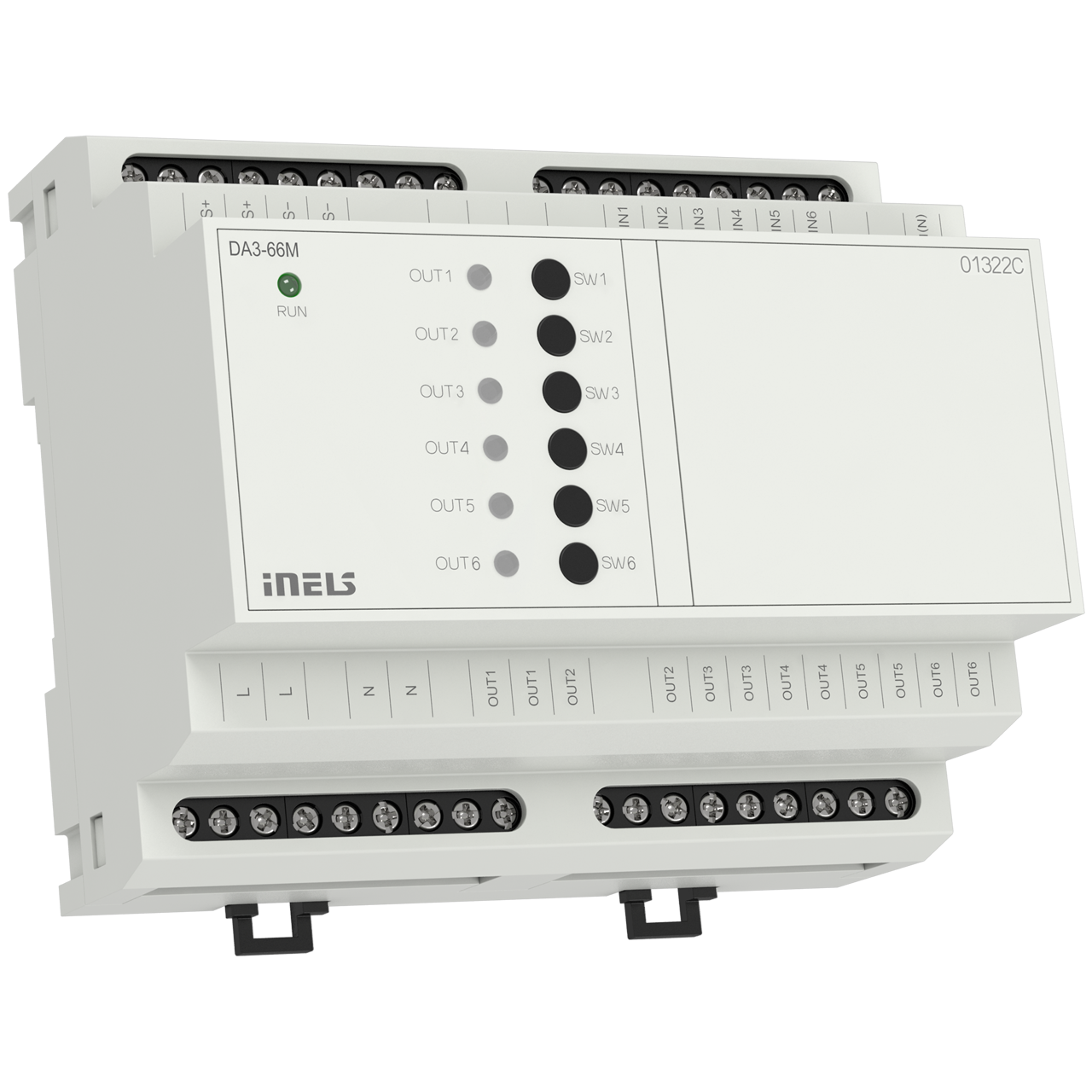

DA3-66M is a universal dimming 6-channel actuator, which is used to control the brightness of dimmable light sources such as ESL, LED and RLC with 230 V power supply.

The DA3-66M has 6 semiconductor-controlled 230 V AC outputs. The maximum possible load is 150 VA for each channel.

The individual outputs of the dimmer can be connected in parallel and thus increase the maximum output load at the expense of the number of outputs.

Each output channel is independently controllable and addressable.

By setting min. brightness, the flickering of different types of light sources is eliminated.

Min. brightness and type of load are performed using SW IDM.

Use the control buttons on the front panel to manually control the output.

The actuator is equipped with electronic overcurrent and thermal protection, which switches off the output in case of overload, short circuit, or overheating.

The dimmer has 6 galvanically separated inputs which can be used both to control the dimmer and as a binary input to the INELS system.

The device supply (potential L) must be protected with a safety device corresponding to the power input of the connected load, e.g. with a quick-release fuse.

During installation, it is necessary to leave at least half a module of free space on each side of the actuator for better cooling.

DA3-66M is in 6-MODULE version and is intended for mounting in a switchboard on DIN rail EN60715
