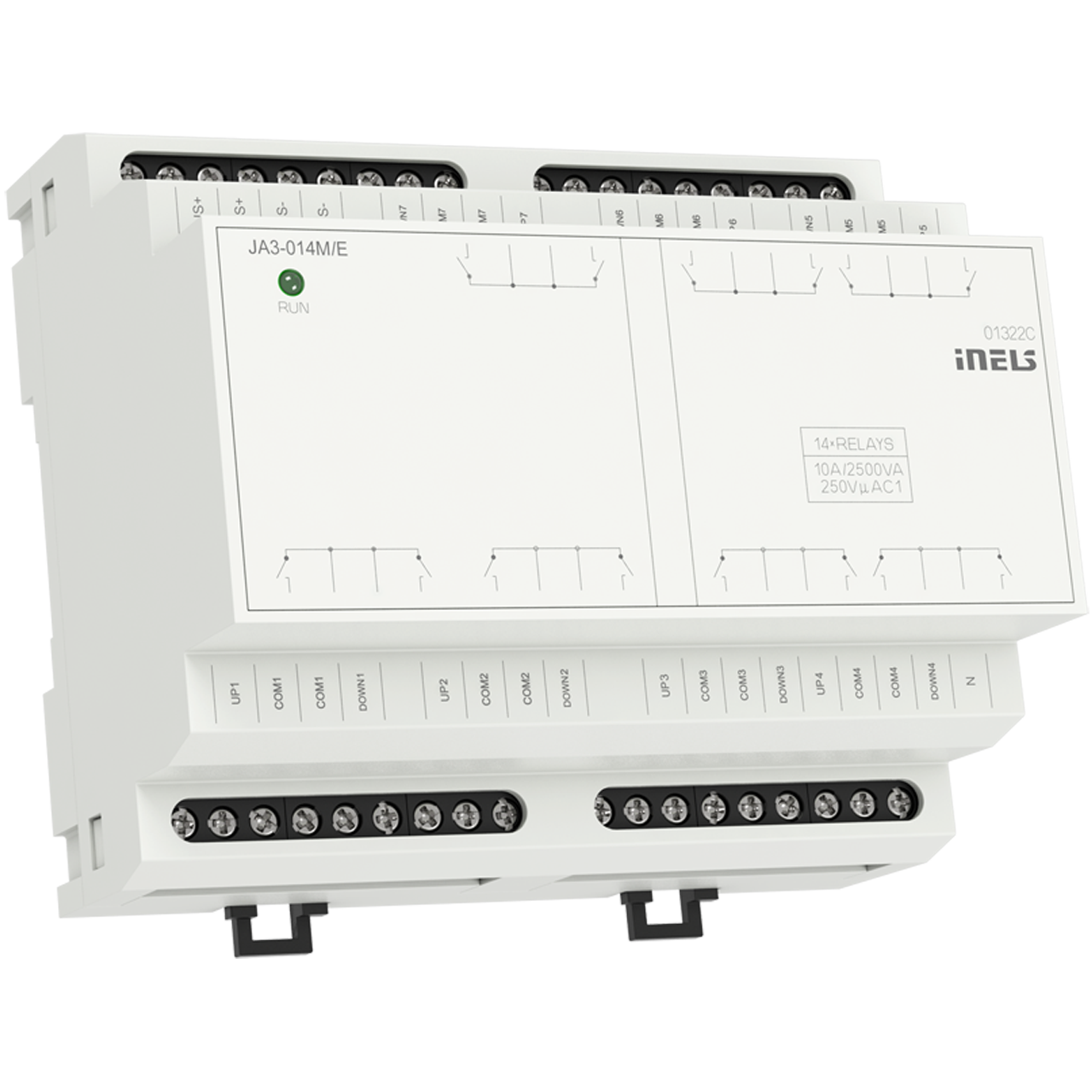

JA3-014M/E

JA3-014M/E is an actuator designed for controlling rollers, shutters, blinds, awnings, garage doors, entrance gates, etc.

It controls electric drives that are controlled in two directions and have a built-in limit switch.

The unit's status is indicated by the green RUN LED on the front panel
- if the BUS voltage is connected, but there is no communication via BUS with the master, the LED RUN is on continuously.
- if the bus voltage is connected and the unit communicates by BUS, the LED RUN flashes.

The software blocking of output relay contacts can be secure using the iNELS Design Manager software.

JA3-014M/E is normally supplied in the option AgSnO2 contact material.

JA3-014M/E in 6-MODULE version is designed for mounting into a switchboard on DIN rail EN60715.

JA3-014M/E is an economical option without manual control buttons on the front panel and status LEDs for the relay output. (possibility to control via iDM software).

The unit has synchronized closing and opening of the relay in the zero voltage of the sinusoidal waveform
