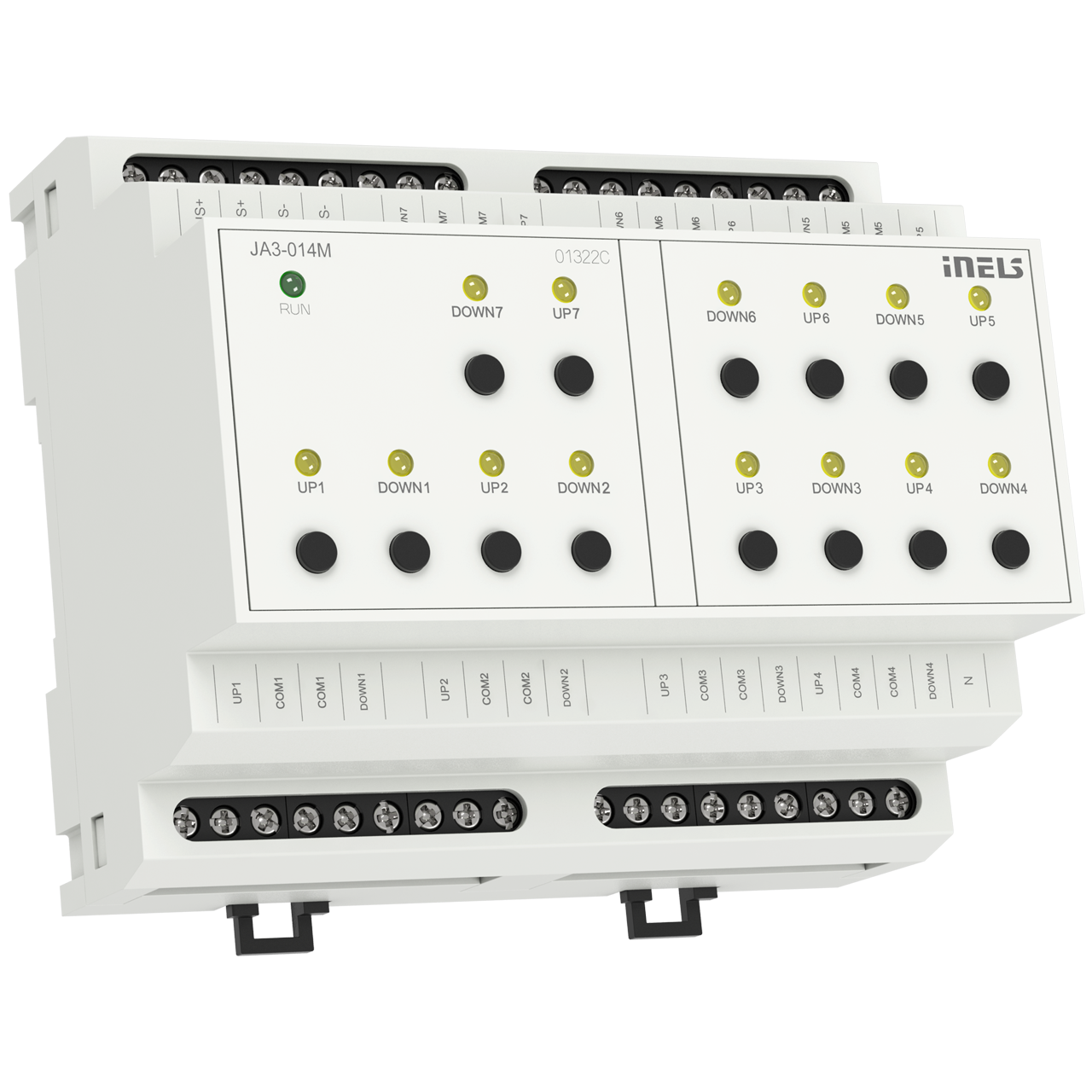

JA3-014M is an actuator designed for controlling rollers, shutters, blinds, awnings, garage doors, entrance gates, etc.

It controls electric drives that are controlled in two directions and have a built-in limit switch.

The unit's status is indicated by the green RUN LED on the front panel
- if the BUS voltage is connected, but there is no communication via BUS with the master, the LED RUN is on continuously.
- if the bus voltage is connected and the unit communicates by BUS, the LED RUN flashes.

The status of the output contacts is indicated by the Up/ Down LED:
- when the blind/roller blind is moving up/down, the corresponding LED lights up.
- if the number of switching operations per minute is exceeded, the corresponding LED flashes.

The contact status of each relay JA3-014M can be changed separately and manually by control buttons on a front panel.

The software blocking of output relay contacts can be secure using the iNELS Design Manager software.

JA3-014M is normally supplied in the option AgSnO2 contact material.

JA3-014M in 6-MODULE version is designed for mounting into a switchboard on DIN rail EN60715.

The unit has synchronized closing and opening of the relay in the zero voltage of the sinusoidal waveform. The sync inputs are COM 1, 2, 3, 4, 5, 6 and 7 against the N terminal.
