The INS4SQ offers a feature-rich and versatile solution for control and monitoring applications, with its powerful hardware, user-friendly display, and support for various interfaces and sensors. Its temperature and humidity tolerance make it a reliable choice in different operating environments.

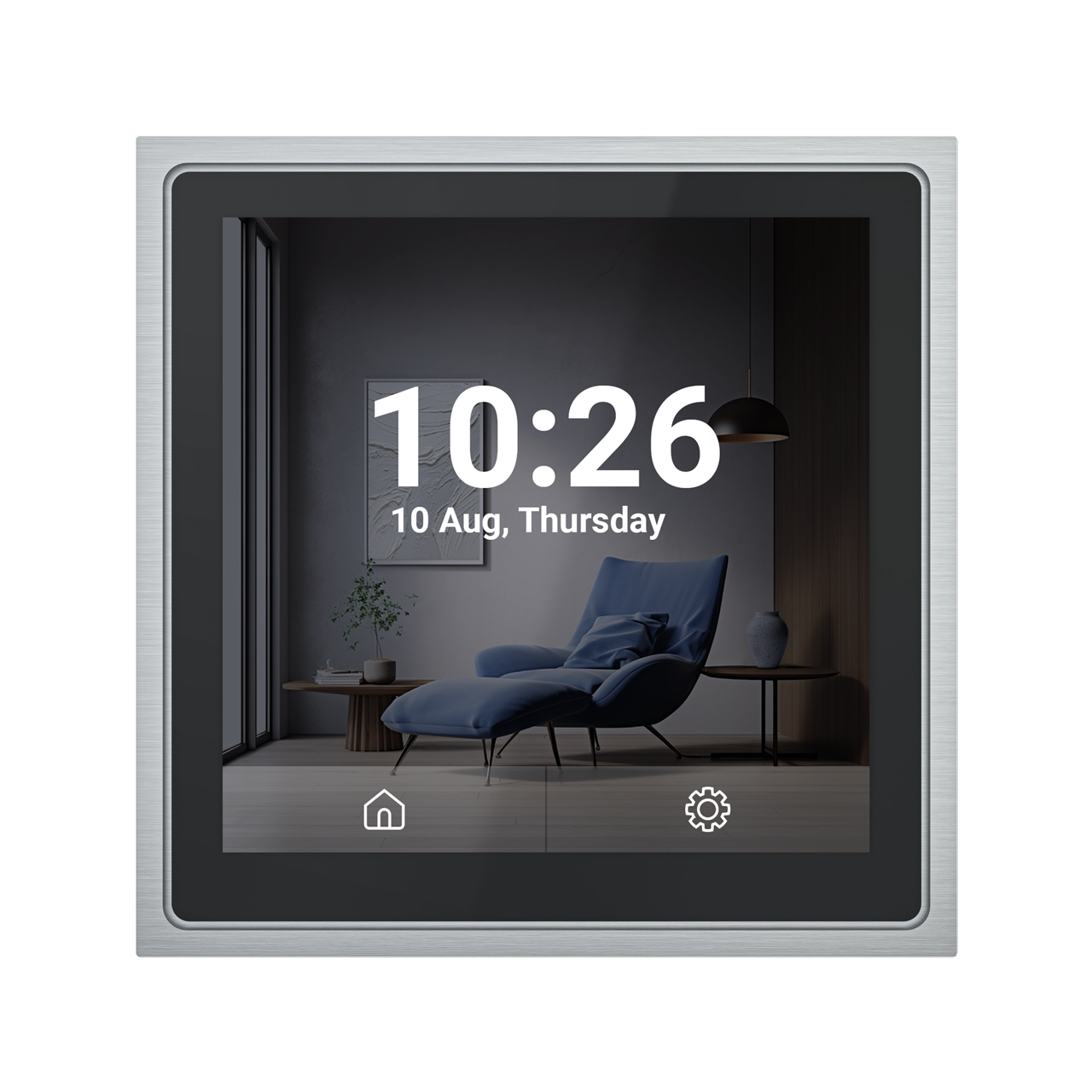

Featuring a high-quality 4" IPS display with a resolution of 480 x 480 and a luminance of 400 cd/m2, the INS4SQ offers crisp and clear visuals for an excellent user experience.

The device runs on the Linux 3.4 operating system supporting up to 200 UI objects and 1000 BMS points.

Equipped with an ARM A7 Single-Core 1.2 GHz processor, 128MB DDR3 RAM, and 256MB Nand fl ash, ensuring reliable performance for various applications.

Integrated with essential sensors, the device includes a humidity sensor with a range of 0% up to 100% RH and a temperature sensor covering a range from -40°C up to +125°C, enabling efficient environmental monitoring.

The INS4SQ comes with a standard LAN RJ45 10/100Mbps interface, ensuring easy network connectivity for data transfer and communication.

The INS4SQ offers a variety of optional interfaces for enhanced connectivity and compatibility. These include RS485, DALI 2, Modbus, VRF, BLE Bluetooth 5.0 and Zigbee 3.0

The INS4SQ operates within a working temperature range of -10°C to +60°C.

The device can be powered by either 24VDC or 48VDC input, and it also supports Power over Ethernet (POE IEEE 802.3af), providing flexibility in power options.

Configuration, programming and update applications over the Skythings platform.
