The EST10 offers a feature-rich and versatile solution for control and monitoring applications, with its powerful hardware, user-friendly display, and support for various interfaces and sensors. Its temperature and humidity tolerance make it a reliable choice in different operating environments.

Featuring IPS 10“ 1280 x 800 resolution 350 cd/m2 luminance with 5 point capacitive touchscreen.

The device runs on OS Android 6.0 operating system with A64 QuadCore 1.3 GHz/1GB DDR3 Ram / 8GB Nand fl ash supporting up to 2000 BMS points.

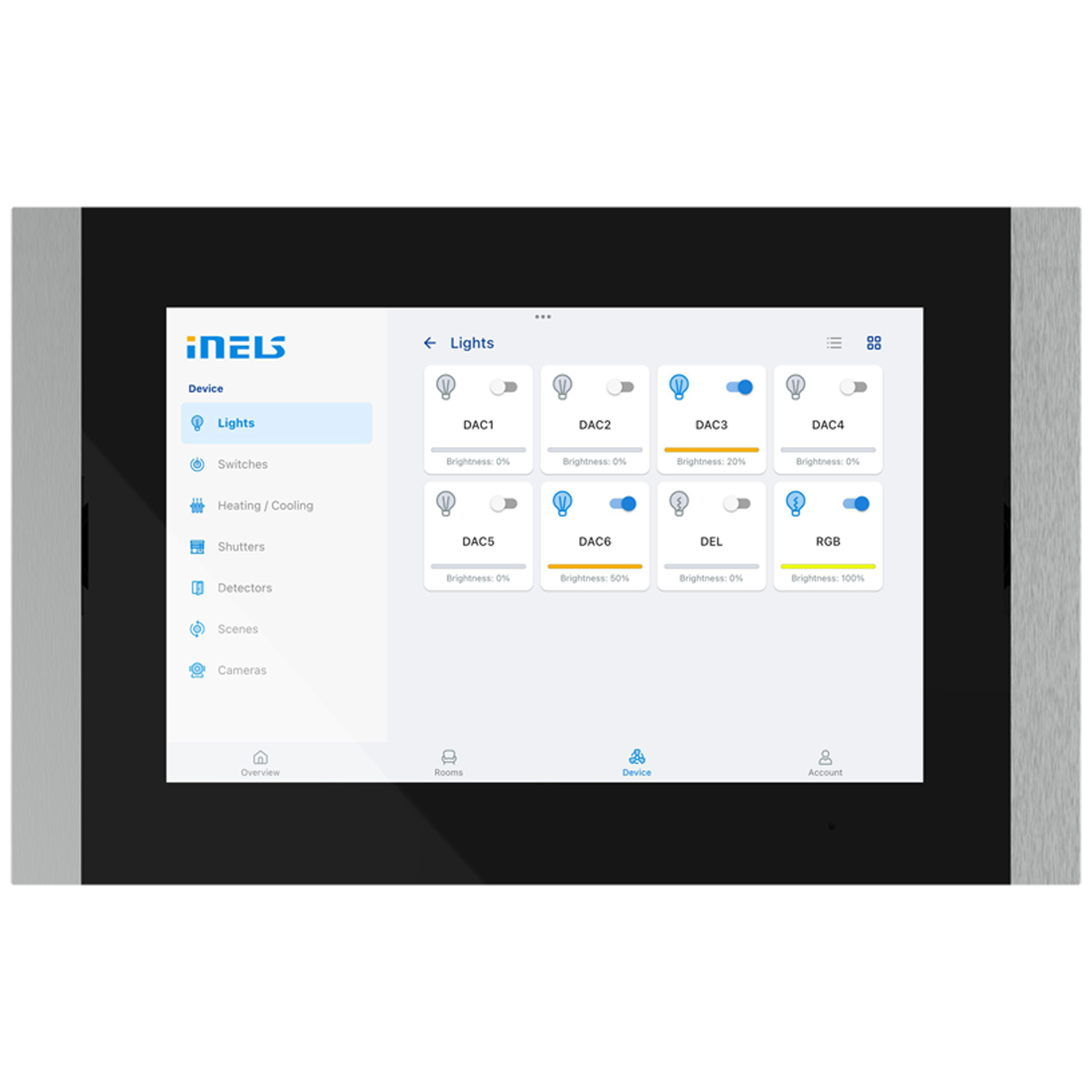

EST10 touch panel designed to control iNELS with Android OS via iNELS applications.

Integrated speakers and microphones are primarily designed for intercom operation

Integrated with essential sensors, the device includes an Ambient illuminance measurement sensor, humidity sensor and temperature sensor, enabling efficient environmental monitoring.

The EST10 comes with a standard LAN RJ45 10/100Mbps interface, ensuring easy network connectivity for data transfer and communication.

The EST10 offers a variety of optional interfaces for enhanced connectivity and compatibility. These include iNELS, RS485, Modbus, VRF, and Zigbee 3.0

The EST10 operates within a working temperature range of -10°C to +60°C.

The device can be powered by either 24VDC, and it also supports Power over Ethernet (POE IEEE 802.3af), providing flexibility in power options max 30W.

Configuration, programming, and update applications over the Skythings platform.

INS10SQ
