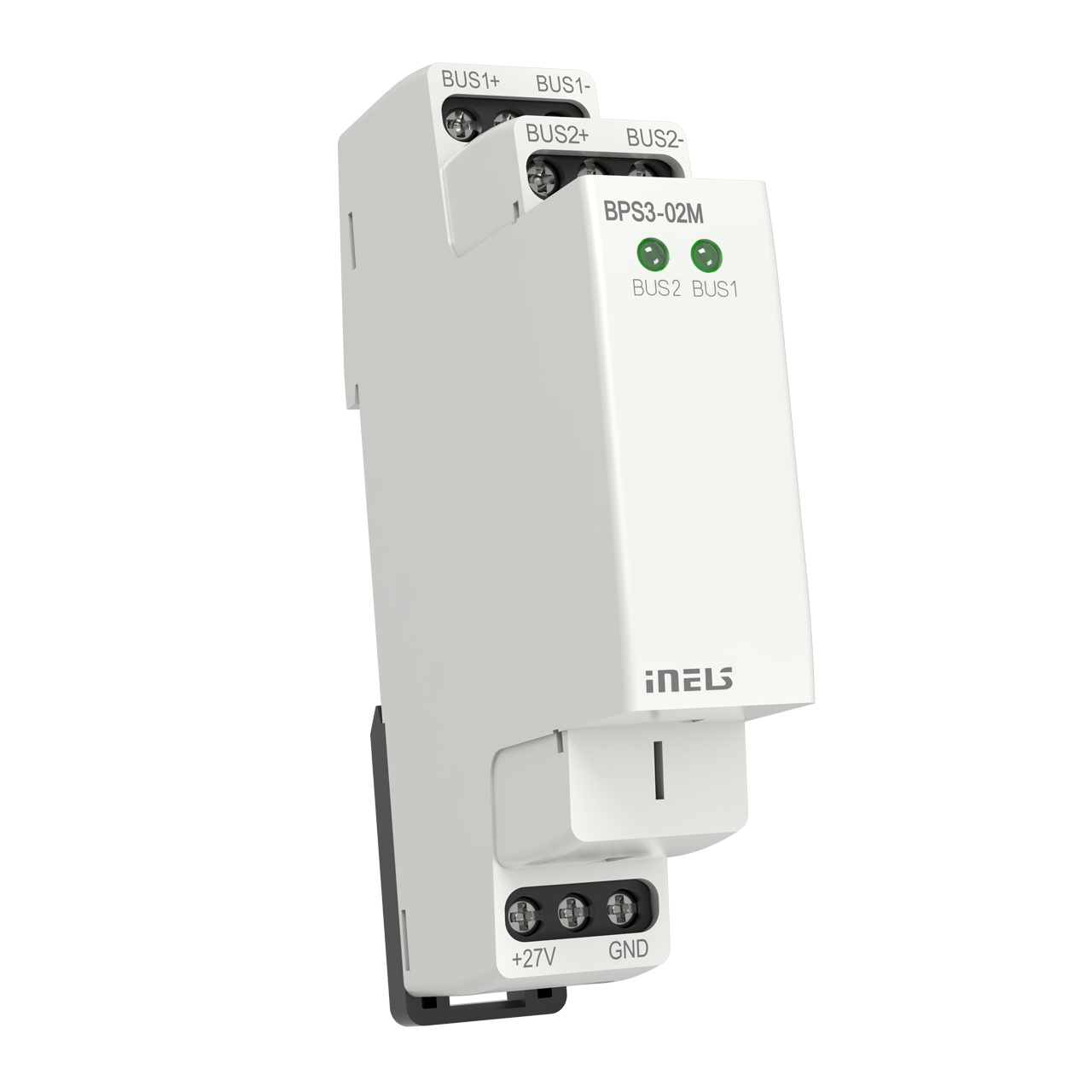

BPS3-02M
BUS separator from power supply
Units BPS3-01M and BPS3-02M serve for impedance separation of BUS from supply voltage power.
A BPS3-01M or BPS3-02M bus isolator is required for each CU3-XXM central unit.
BPS3-01M allows you to connect one BUS with max. load 3 A.
BPS3-02M allows you to connect two separate BUS1 and BUS2 with max. load 1 A for each line.
Outputs are equipped with overcurrent and overvoltage protection.
Indication of output voltage outputs BUS LED.
BPS3-01M and BPS3-02M in 1-MODULE version is designed for mounting into a switchboard, on DIN rail EN60715
- EAN
- 8595188132435
- Product code
- BPS3-02M
