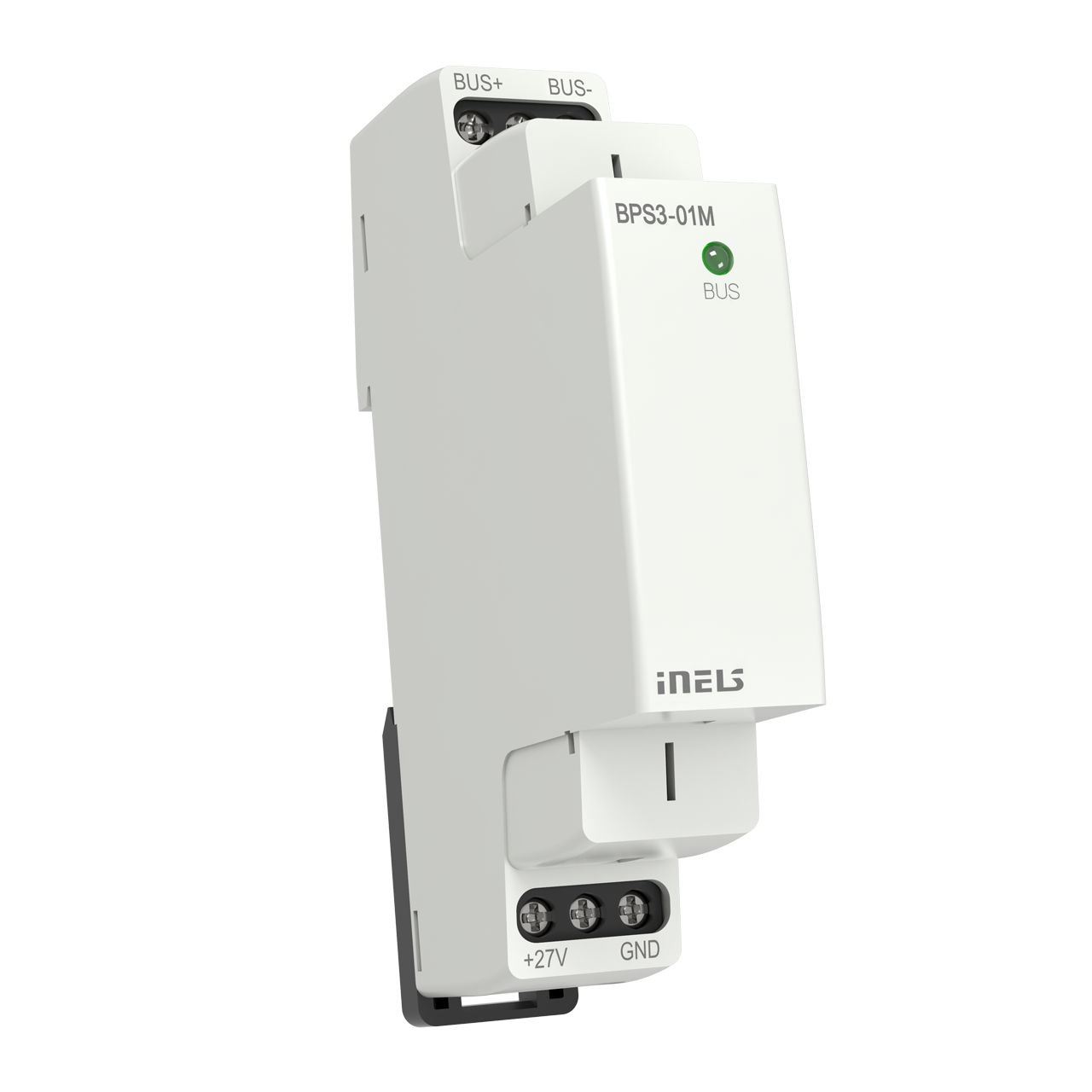

BPS3-01M
BUS separator from power supply
The BPS3-01M and BPS3-02M units are used for impedance separation of the BUS from the supply voltage source.
A BPS3-01M or BPS3-02M bus isolator is required for each CU3-XXM central unit.
BPS3-01M allows the connection of one BUS branch with a load of max. 3 A.
BPS3-02M allows the connection of two BUS branches with a load of max. 1 A for each branch.
The outputs are equipped with overcurrent and surge protection.
Indication of the output voltage of the BUS outputs by LEDs.
BPS3-01M, BPS3-02M in 1-MODULE design are designed for mounting in a switchboard on DIN rail EN60715.
- EAN
- 8595188132442
- Product code
- BPS3-01M
