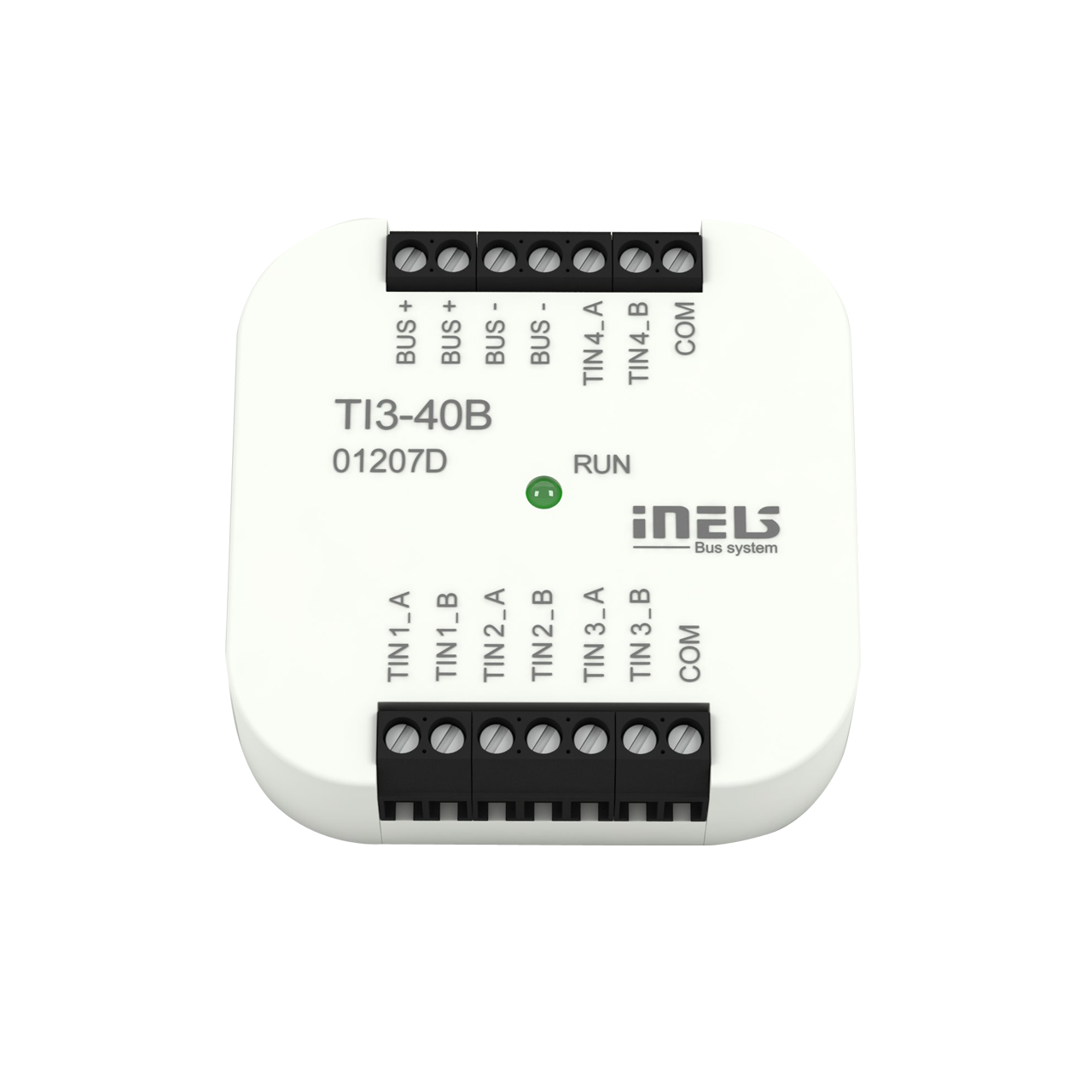

TI3-40B

The unit is designed for connection of up to four (TI3-40B) external temperature sensors.

Units range TI3 support the connection of the following temperature sensors:
- TC/TZ - 2-wire connections
- Ni1000, Pt1000, Pt100 - 2-wire and 3-wire connections

Used when necessary to take temperatures from different places
(for example large floor heating – diagonal layout of sensors, floor/ space, indoor/outdoor temperature, technological device – boiler, solar heating etc.)

Status of units indicated by green RUN LED on the front panel:
- if the supply voltage is connected (units are powered via the BUS), but there is no communication with the master, RUN LED is lit continuously.
- if the supply voltage is connected and the unit communicates via standard BUS, RUN LED flashes.

TI3-40B in version B is designed for mounting into an installation box.
