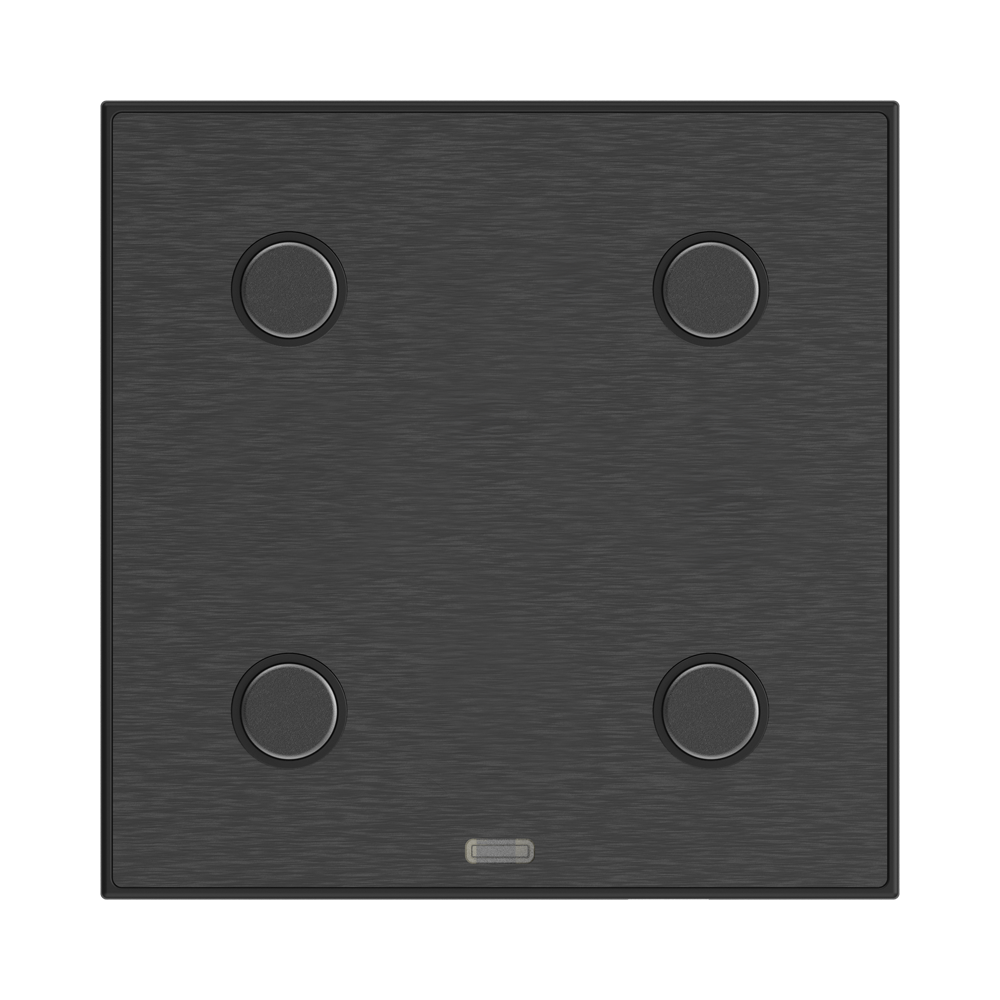

Metal switch buttons MSB3-40/XXare part of a comprehensive range of iNELS control units and can be advantageously used in all projects.

MSB3 comes with premium metal plates in antique copper, satin brass, brushed silver, and graphite black finish.

MSB3-40/XX is equipped with four touch buttons whose functions can easily be modified by the software.

The metal switch buttons are equipped with an integrated temperature sensor. It is also equipped with analog-to-digital input (AIN/DIN), which can be used to connect potential-free contact or external temperature sensor TC/TZ (for example temperature measurement of the floor).

Advantages over conventional switches/buttons are saving space, signaling the state of any system output, the ability to measure temperature as well as the ability to connect external buttons or detectors.

Each button can control any actuator (appliance) in the system. Also, you can assign each button a different function or macro (set of functions).

It is therefore possible to use one button to control several appliances at once.

The metal switch button is a design component of the iNELS system and is available in antique copper, satin brass, brushed silver, and graphite black versions.

Individual buttons can be illuminated in white.

MSB3-40/XX are designed for mounting into an installation box.

All versions are in the size of the standard module (94x94 mm)
