GSB3-40

Glass touch controllers GSB3-XXX are part of a comprehensive range of glass iNELS control units and can be advantageously used in all projects for example as a part of guest room management system (GRMS).

The GSB3-40, GSB3-60, and GSB3-90 models feature a square design, while the GSB3-240, GSB3-260, and GSB3-290 models come in a round design.

GSB3-40 and GSB3-240 are equipped with four, GSB3-60, GSB3-260 six and GSB3- 90, GSB3-290 nine touch buttons whose functions can easily be modified by the software.

The glass touch controller is equipped with an integrated temperature sensor. It is also equipped with analog-to-digital input (AIN/DIN), which can be used to connect potential-free contact or external temperature sensor TC/TZ (for example temperature measurement of the floor).

Advantages over conventional switches/buttons are saving space, signaling the state of any system output, the ability to measure temperature as well and the ability to connect external buttons or detectors.

Each button can control any actuator (appliance) in the system. Also, you can assign each button a different function or macro (set of functions). It is therefore possible to use one button to control several appliances at once.

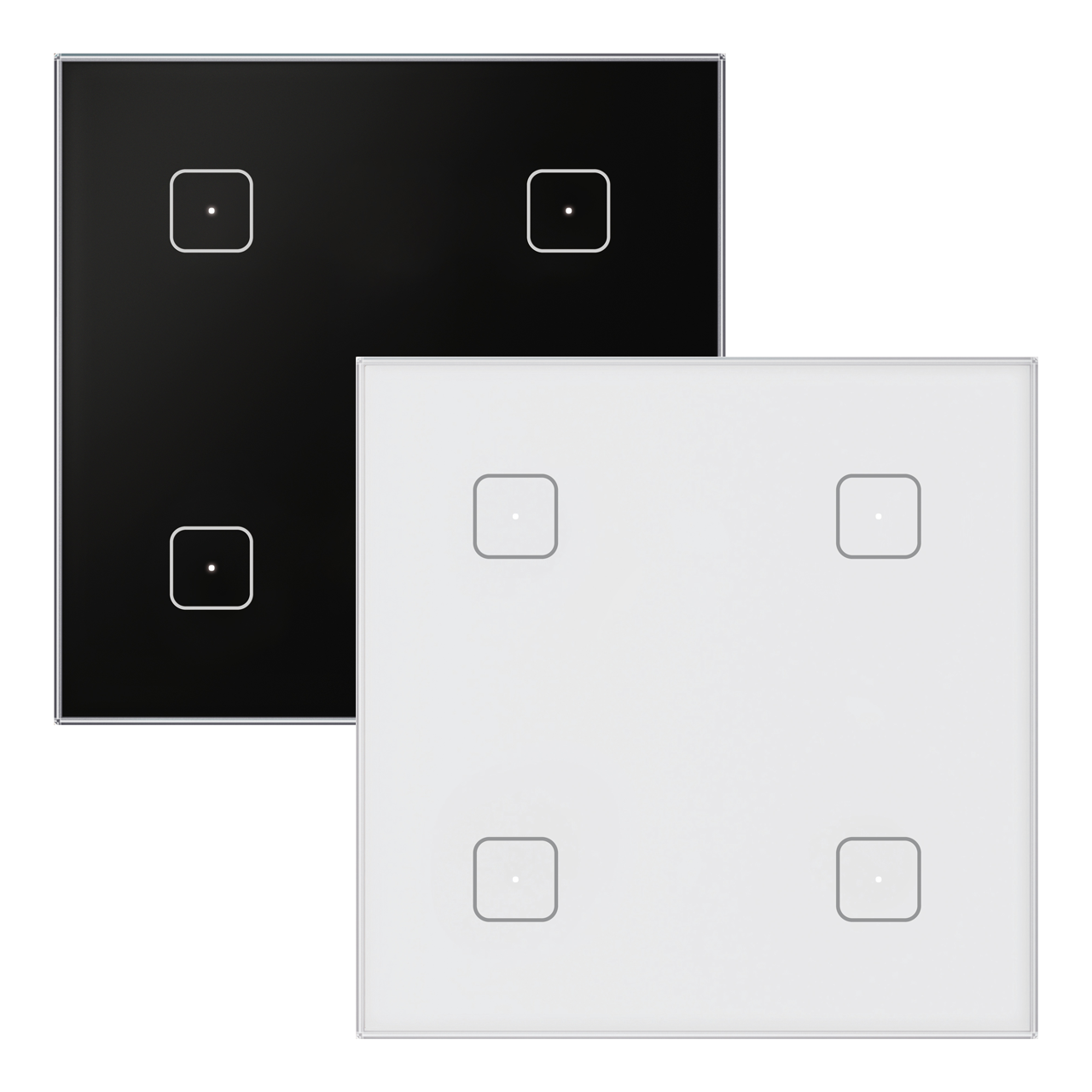

The glass touch panel is a design component of the iNELS system and is available in elegant black (GSB3-XXX/B) and white (GSB3-XXX/W) versions.

The individual capacitive buttons are point-illuminated by a blue LED indicating the status of the controlled output.

All versions are in the size of the standard module (94x94 mm) and designed for mounting into an installation box.
