Glass card reader GCR3-30 is part of a comprehensive range of glass iNELS control units and can be advantageously used in all projects, e.g. guest room management system (GRMS).

GCR3-30 card reader is designed for reading smart cards, which are intended to enter the hotel room or any other part of the building.

GCR3-30 supports RFID media with a carrier frequency of 13.56 MHz. Supported card types Mifare 1k, 4k, Ultralight, DesFire, ISO/IEC 14443-4 (CD97BX, CD light, P5CN072 (SMX) Innovision jewel (IRT5001), FeliCa (RCS_860, RCS_854)

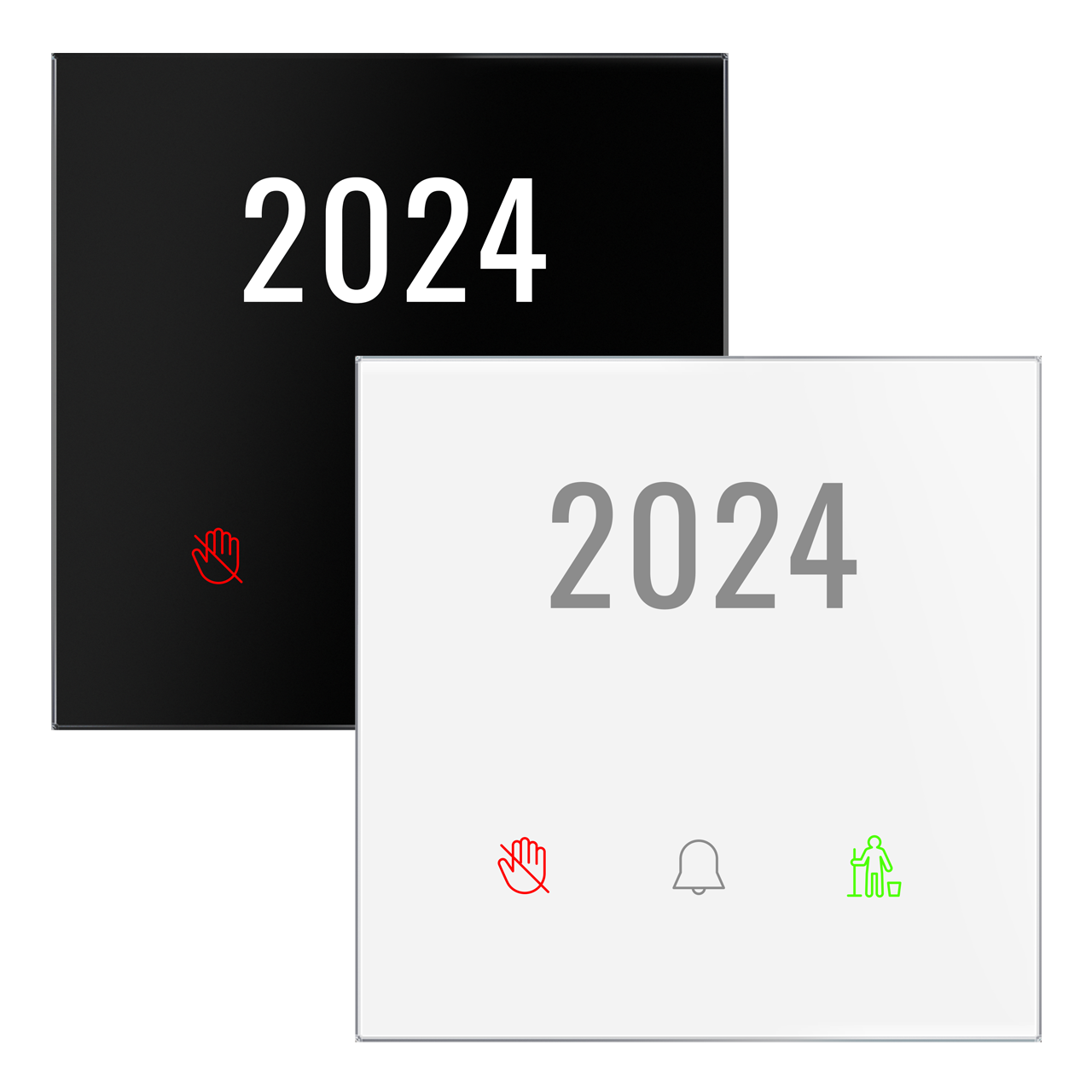

The GCR3 is a design component of the iNELS system and is available in elegant black (GCR3-30/B, GCR3-230/B ) and white (GCR3-30/ W, GCR3-230/ W) variants. The GCR3-30 models feature a square design, while the GCR3-230 models come in a round design.

Engraving of symbols is possible upon request. The room number as well as the logo of the hotel can be also engraved on each component.

The controller is also equipped with 3x capacitive touch buttons with different functions or macro (set of functions). It is therefore possible to use one button to control several applications. For eg. the function of the bell and two icons to indicate the status of guest requests, e.g. “Do Not Disturb" and "Make Up Room", whose state guests can set from other glass switch panels.

Individual symbols can be illuminated in one of seven colours - red, green, blue, yellow, pink, turquoise and white.

Reader GCR3-30 is equipped with a sensor for ambient light intensity and proximity sensor. Based on information from the sensor it can e.g. switch the lighting circuits in the corridor.

All versions are in the size of the standard module (94x94 mm) and are designed for mounting into an installation.

GCR3-30 is designed for mounting into an installation box.
