Switching actuators

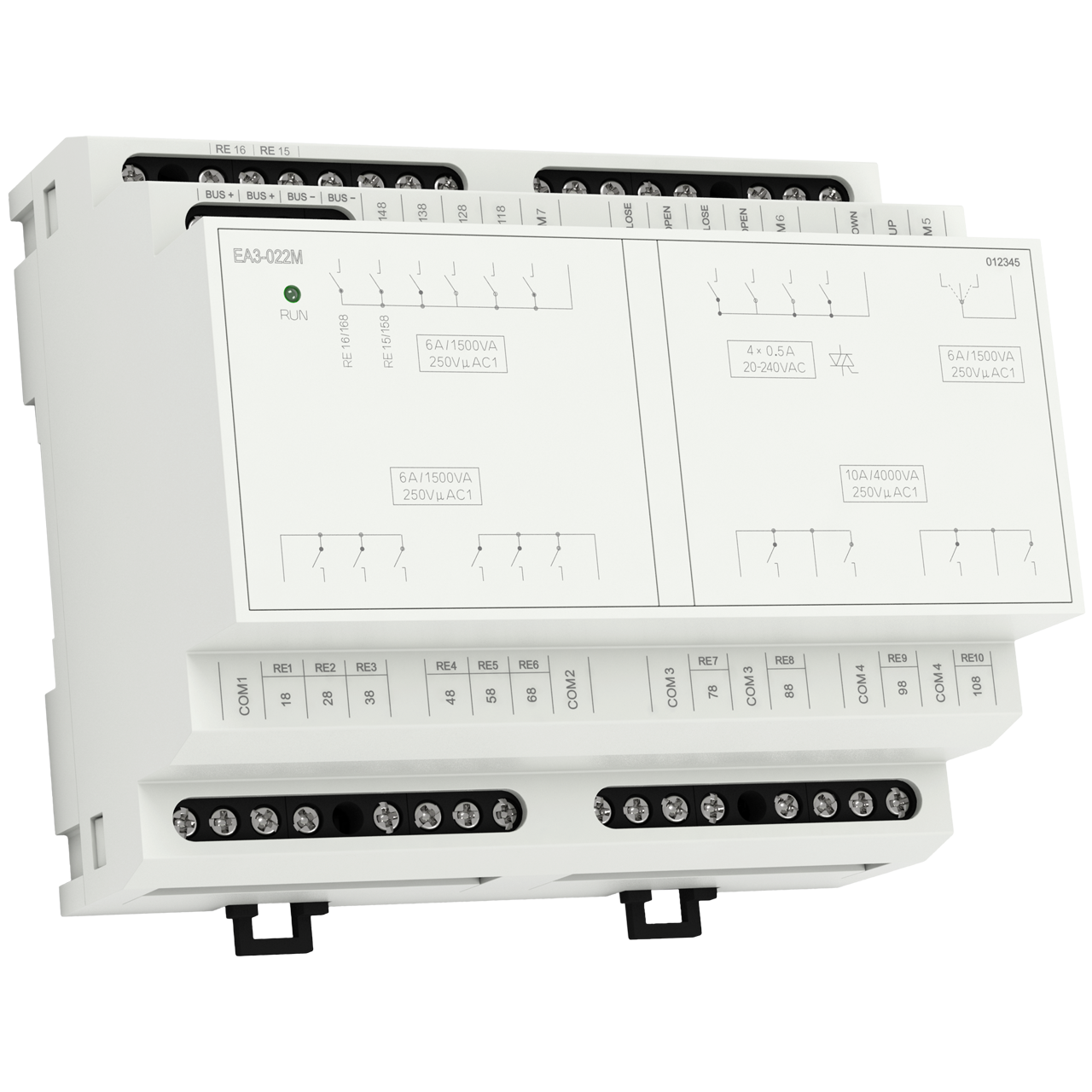

EA3-022M
Switching actuator without controls and indicator, 22-channels
Equipped with 22 relay outputs (of which 1x changeover contact – roller blinds, blinds).
Switch lighting and socket circuits (6 A and 10 A relay) with common potential at the "COMx" terminal.
Control of roller blinds, blinds (24 - 230 V AC/DC)
Relay control of the fan coil unit - heating/cooling, 3 fan speeds (24 - 230 V AC/DC).
Connection to BUS, communication with CU3.
EA3-022M in design 6-MODULE is designed to be mounted into a switchboard, onto DIN rail EN60715
- EAN
- 8595188135238
- Product code
- EA3-022M
